Fleet E-Bike Weatherproofing: IP, Corrosion & Storage

For operators running bikes through wet winters, weatherproofing is not a comfort feature but an availability variable. A specification that lists one IP number for the whole vehicle tells a procurement team almost nothing about whether the fleet will still be serviceable in March, or how much workshop time will be consumed by corroded connectors and seized locks. The practical consequence is that IP ratings, salt-spray hours, connector materials and charge-temperature windows belong in the specification sheet and the acceptance clause, alongside price and delivery — because they determine cleaning procedures, warranty attribution, and whether a low-cost fleet fails as a cohort in its second year.

IPX4, IP65 and IP67 are not points on a single scale of toughness; they are three different tests. IPX4 is a spray or splash test at low pressure from a defined direction. IP65 combines dust-tightness with a water jet at higher pressure. IP67 is short-term immersion at a stated depth and duration. None of them is a durability test, and immersion is the one most often misread: a sealed pack that passes a static dunk can still fail in service, because a warm pack cooling overnight pulls a slight vacuum and draws moisture in through cable entries, through gaskets that have taken a compression set, or through a poorly placed vent. Spray ratings say nothing at all about the salt load of a gritted winter road.

This is why per-component declaration matters more than a single vehicle figure. Battery pack, motor, display, harness connectors, and the battery lock each face a different exposure and each should carry its own rating and its own test basis. A pack may be sealed to a high level while the display is only spray-rated and the connector behind the head tube is unprotected; the vehicle's real weather resistance is set by the weakest of these, not the best. Vendor claims frequently omit test duration, water pressure, nozzle geometry, and whether the sample was new or aged. Ask for a third-party report with the test conditions stated, and write per-component IP requirements plus a sampling ratio into the purchase order, so that a compliant sample bike cannot quietly become a downgraded production unit.

An IP rating describes a test, not a service life. The specification should say which test, on which component, under which conditions.

Corrosion is a slower and more expensive failure mode than water ingress. Salt-spray hours are the useful currency, and the number has to be matched to the operating city rather than copied from a datasheet: a coastal or heavy-deicing city with repeated freeze-thaw cycles and gritted roads puts a far higher chloride load on frames and fasteners than an inland city with occasional rain. A 480-hour rating may be adequate for one and insufficient for the other, and 720 hours is a reasonable ask where roads are salted for months. The test standard and the pass/fail rating scale must be named, because hours alone are not comparable across different acceptance criteria. Material pairing matters as much as coating thickness: stainless fasteners into an aluminium frame, or a steel bracket bolted to an aluminium casting, create galvanic couples that corrode at the joint long before the painted surface shows anything.

Frame coating, fork finish, bolt grade, chain and rim hardware and brake parts need to be treated as a system rather than a parts list. Where dissimilar metals must meet, isolating washers, plated fasteners and a specified anti-seize compound belong in the drawing, not in the assembler's judgement. On the electrical side, connector plating, the grade and compression set of sealing rings, deliberate drain paths, and harness routing that avoids water-collecting loops determine long-term reliability far more than the headline IP number. Cleaning is the other half of the problem: high-pressure washers drive water past seals that survive rain, and steam pushes vapour into places where it later condenses. A written cleaning SOP — low pressure, no direct jet at bearings, connectors, display edges or charge ports, and a defined drying step before charging — should be a contract document for any shared fleet.

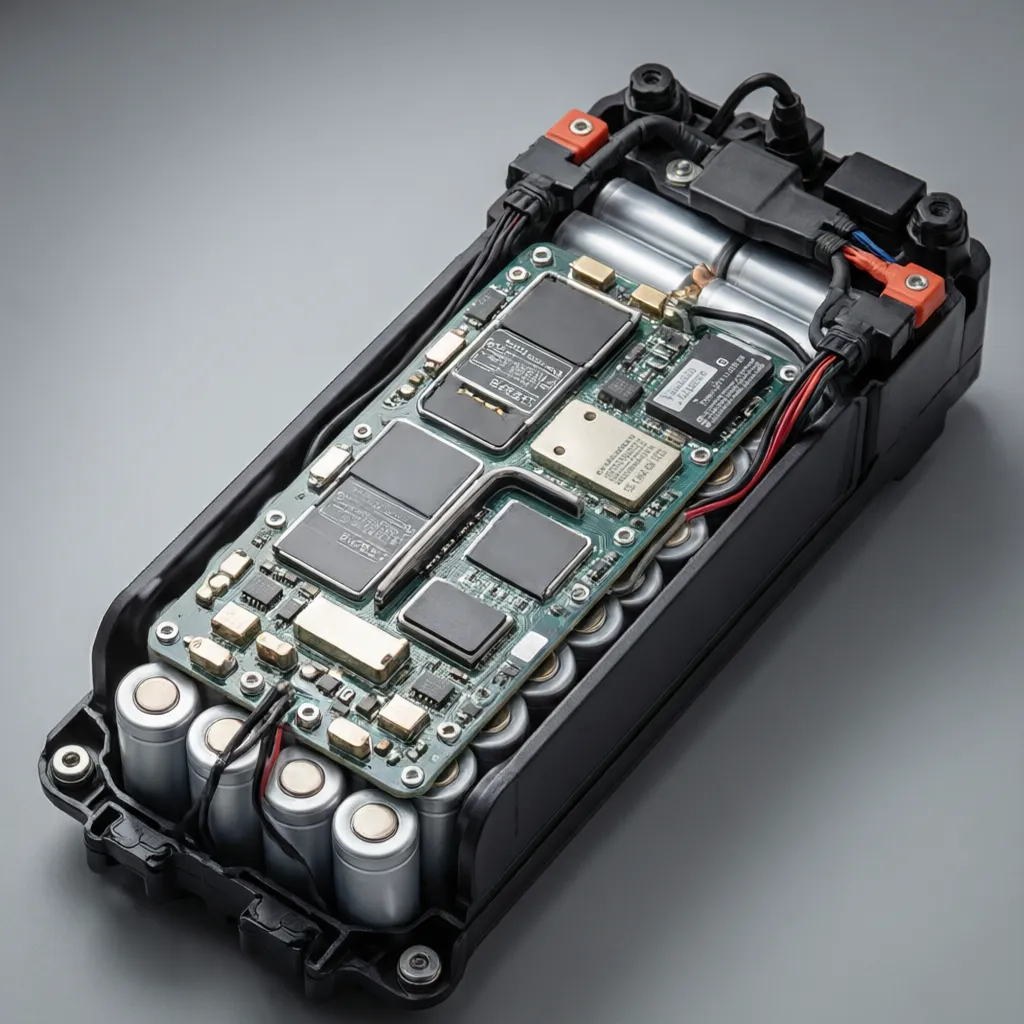

Condensation is the failure mode specification documents most often ignore. Day-night temperature swings, plus the heat a pack generates in use and its subsequent cooling, cycle the air inside a battery compartment; moisture migrates in and condenses on cold metal — terminal faces, BMS boards, the inside of the charge port. A properly specified breathable membrane or pressure-equalisation vent lets the enclosure breathe without admitting liquid water, and its placement and service life should be defined, since a blocked or painted-over vent turns the enclosure into a trap. Charge ports and locks need drainage and anti-ice geometry: a port that fills with meltwater and refreezes overnight produces a bike that cannot be charged or unlocked in the morning, which is a dispatch problem, not a maintenance one.

Low-temperature behaviour needs to be written as an operating window rather than left to the rider. Charging below the manufacturer's minimum cell temperature should be blocked by the BMS, not merely discouraged in a manual, and capacity fade below roughly -10°C should be planned into range and shift scheduling instead of discovered. Storage temperature ranges for pack, display and charger are usually narrower than operating ranges and should be stated separately. Garage storage and outdoor storage are not equivalent, so a fleet parking outdoors needs insulated or heated charging arrangements, or a policy that brings packs indoors during the cold months.

For long-term storage, a mid-range state of charge, a dry and frost-free location, and a scheduled top-up to compensate for self-discharge are the practical minimum; a pack left flat and frozen over a season is a warranty conversation waiting to happen. Pre-season inspection should cover vent and gasket condition, terminal and connector corrosion, bolt torque, brake function and tyre condition, documented per bike so that repeat failures at the same location become visible.

The procurement route is to convert all of this into acceptance items: per-component IP with test conditions, salt-spray hours with a named standard and rating scale, a temperature-cycling test, a spray or immersion sampling regime on delivered batches, and a transport drop test. Retaining failed samples and agreeing a written attribution rule for water-ingress and corrosion claims protects both sides — without it, every corroded connector becomes a negotiation. Finally, spec by climate zone: mudguards with real coverage, higher-grade seals, and battery heating where cold is the binding constraint usually cost less than the downtime and warranty they displace, and they make the total cost of ownership comparison between a cheap fleet and a specified one honest.
