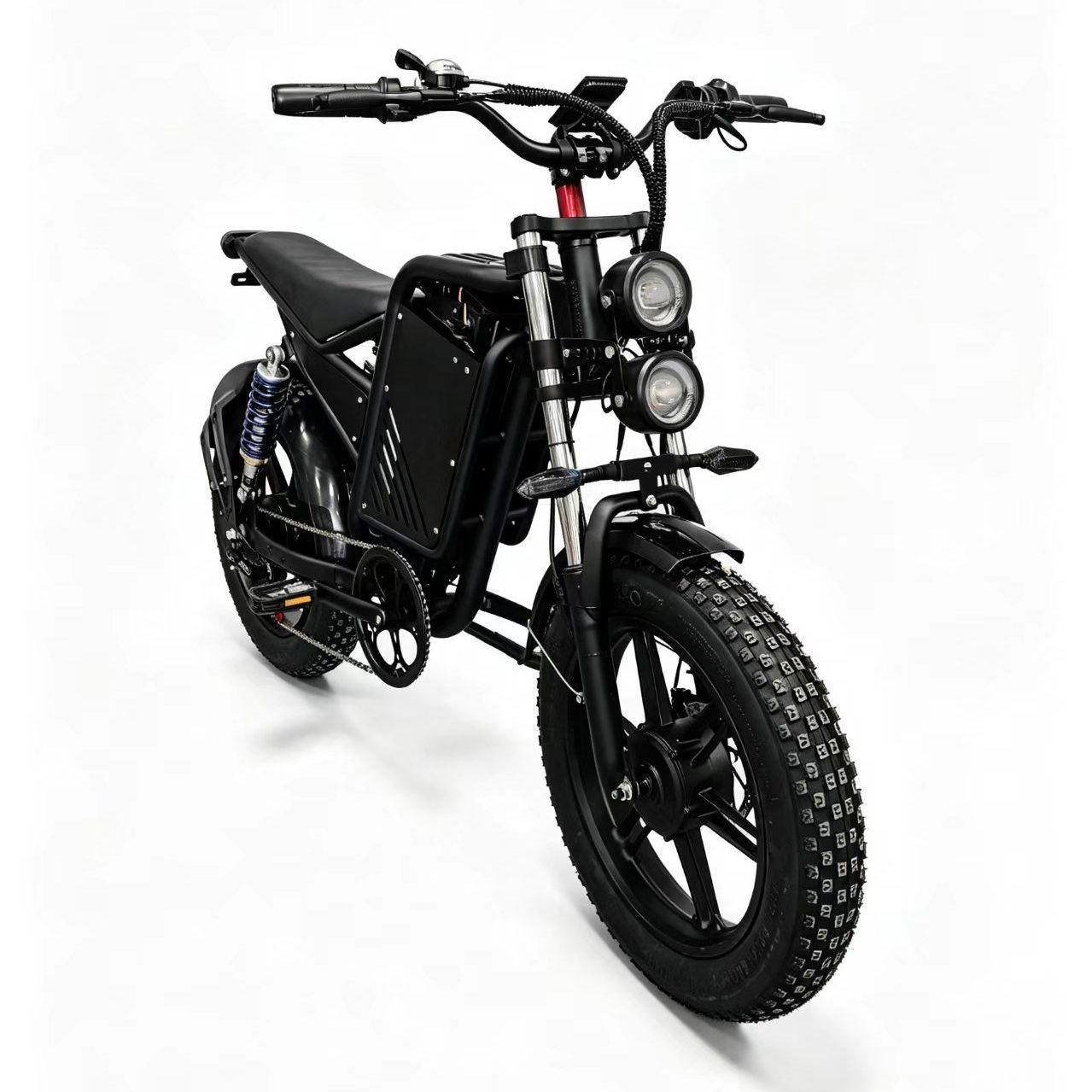

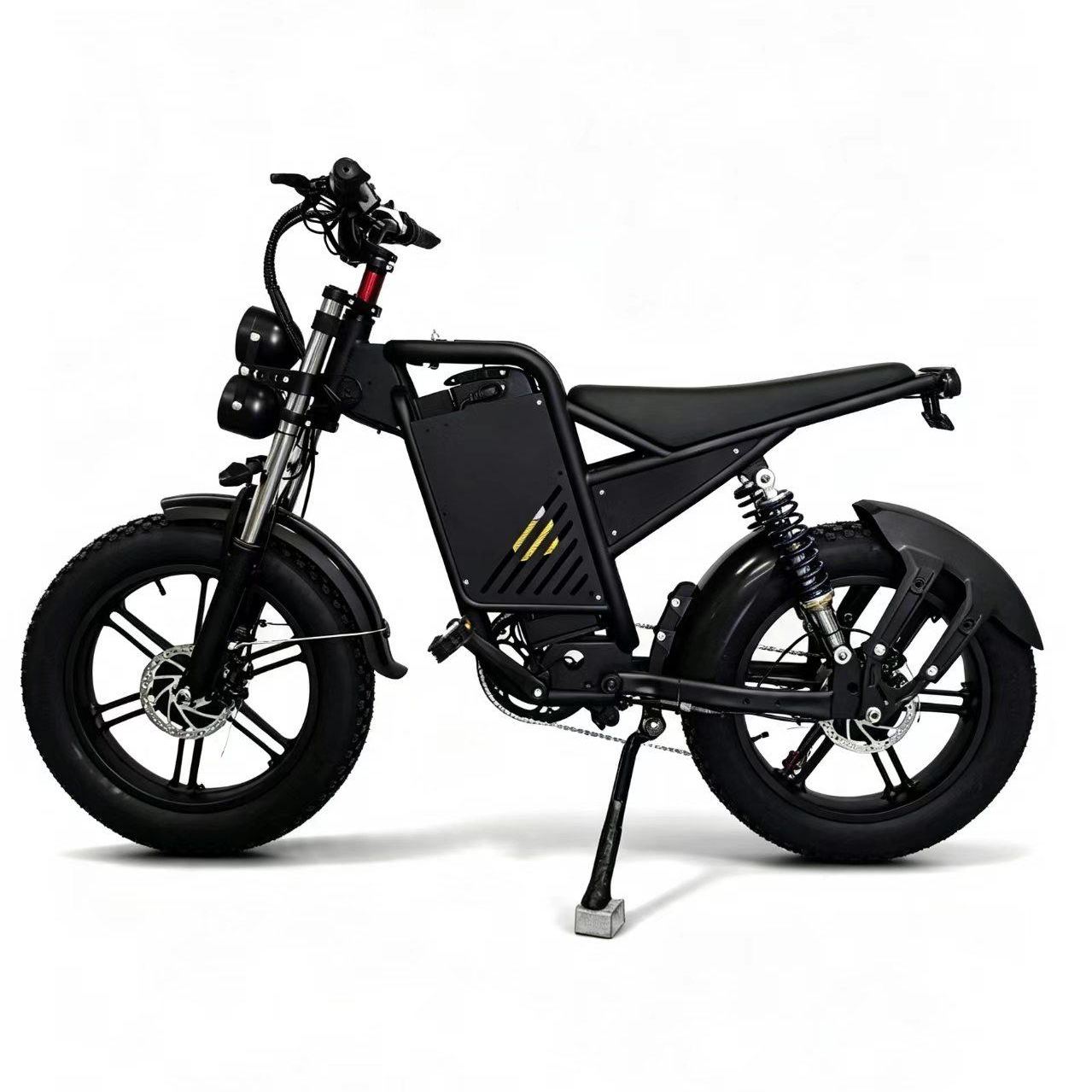

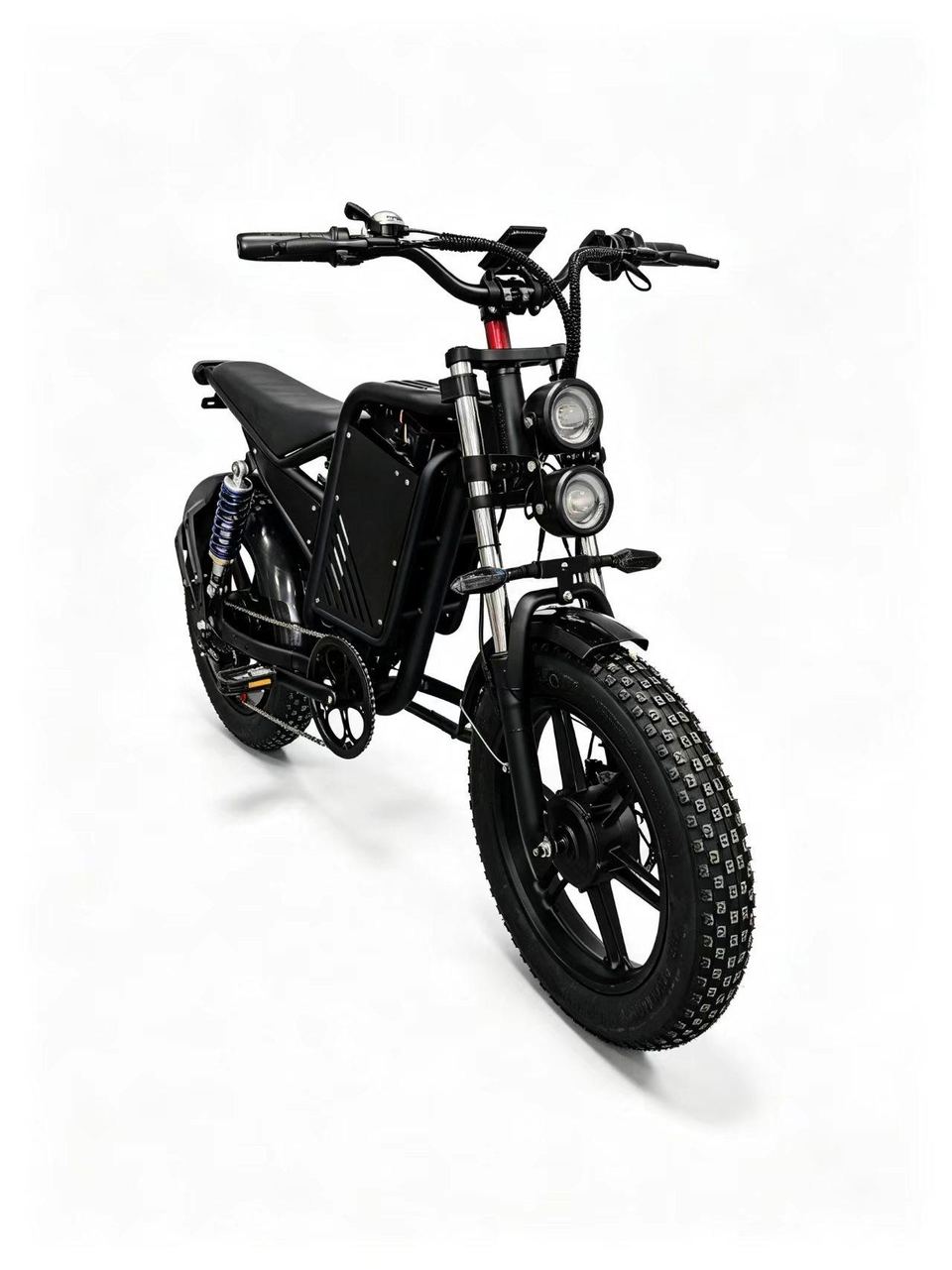

K15 Fat Tire E-bike

K15 fat tire electric bike is built with a 500W hub motor and 48V 16Ah lithium battery. It delivers a riding range of 40–50km and a max speed of 25–50km/h.

It adopts high carbon steel frame, 20*4.0 fat tire, dual oil spring suspension front fork. Shimano 7-speed drivetrain for smooth shifting.

3 riding modes available: throttle only, pedal assist, manual riding. IP68 waterproof wiring & IP65 waterproof display with USB charging function.

Specifications

- Motor: 500W Hub Motor

- Battery: 48V 16Ah Li-ion Battery

- Range: 40–50km

- Max Speed: 25–50km/h

- Tire: 20"×4.0

- Frame: High Carbon Steel

- Handlebar & Seat Tube: Aluminum Alloy

- Gear System: Shimano 7-speed (TX50 shifter, ZT50 derailleur)

- Controller: 9 Tube 25A Sine Wave Brushless

- Brake: Front & Rear Mechanical Disc Brake

- Crankset: Aluminum Alloy 48T

- Pedal: Half Aluminum Folding Pedal

- Sensor: 12 Magnet Speed Sensor

- Light: Dual-function headlight; Single brake
